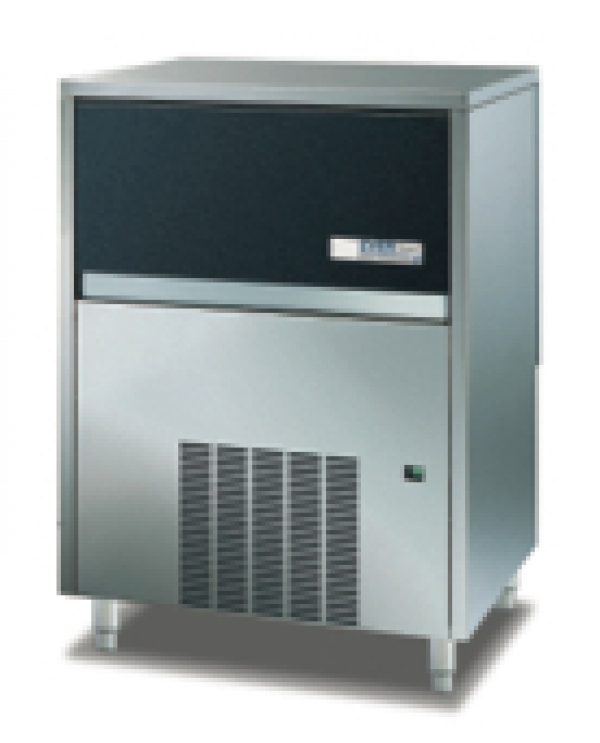

Structure : completely realized in stainless steel 18/10 AISI 304.
Inside, the structure it includes a bin, realized in atoxic plastic
material, where is stored the ice, when this bin is full, the machine
stop itself to produce ice. The bin is also insulated, to avoid the
melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic
made that closes the storage bin
• Water inlet and outlet : both located in the rear part of the
appliance. The water inlet is 3/4” size, while the water outlet is 24
mm ?. Both the pipes for the water inlet and outlet are included in
the machine, the one for the inlet is about 110 cm long, while the
outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 80
• Bin capacity (Kg) : 40 (approx. 2350 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit
compounded by Nr 1 hermetic compressor and Nr 1 finned
condenser, air cooled through a fan, in the version “A” or Nr 1
condenser, water cooled, in the version “W”. Also, the motor
compartment, incorporates the special evaporator with the shape of
the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to
grant the maximum reliability
• Water consumption (litres/Kg) : 2,8 (version A), 13 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 52
• Dimensions (W x D x H cm) : 74 x 60 x 105
• Net weight (Kg) : 86
• Packed dimensions (W x D x H cm) : 78 x 64 x 109 (0,55 m³)
• Gross weight (Kg) : 98

Structure : completely realized in stainless steel 18/10 AISI 304.
Inside, the structure it includes a bin, realized in atoxic plastic
material, where is stored the ice, when this bin is full, the machine
stop itself to produce ice. The bin is also insulated, to avoid the
melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic
made that closes the storage bin
• Water inlet and outlet : both located in the rear part of the
appliance. The water inlet is 3/4” size, while the water outlet is 24
mm ?. Both the pipes for the water inlet and outlet are included in
the machine, the one for the inlet is about 110 cm long, while the
outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 65
• Bin capacity (Kg) : 40 (approx. 2350 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit
compounded by Nr 1 hermetic compressor and Nr 1 finned
condenser, air cooled through a fan, in the version “A” or Nr 1
condenser, water cooled, in the version “W”. Also, the motor
compartment, incorporates the special evaporator with the shape of
the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to
grant the maximum reliability
• Water consumption (litres/Kg) : 2,8 (version A), 13 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 52
• Dimensions (W x D x H cm) : 74 x 60 x 105
• Net weight (Kg) : 77
• Packed dimensions (W x D x H cm) : 78 x 64 x 109 (0,55 m³)
• Gross weight (Kg) : 89

Structure : completely realized in stainless steel 18/10 AISI 304. Inside,
the structure it includes a bin, realized in atoxic plastic material, where is
stored the ice, when this bin is full, the machine stop itself to produce ice.
The bin is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made
that closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes
for the water inlet and outlet are included in the machine, the one for the
inlet is about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 46
• Bin capacity (Kg) : 25 (approx. 1470 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 4 (version A), 16 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 50
• Dimensions (W x D x H cm) : 50 x 58 x 93
• Net weight (Kg) : 56
• Packed dimensions (W x D x H cm) : 55 x 63 x 97 (0,34 m³)
• Gross weight (Kg) : 64

Structure : completely realized in stainless steel 18/10 AISI 304. Inside,
the structure it includes a bin, realized in atoxic plastic material, where is
stored the ice, when this bin is full, the machine stop itself to produce ice.
The bin is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made
that closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes
for the water inlet and outlet are included in the machine, the one for the
inlet is about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 42
• Bin capacity (Kg) : 16 (approx. 950 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 4 (version A), 16 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 50
• Dimensions (W x D x H cm) : 50 x 58 x 82
• Net weight (Kg) : 52
• Packed dimensions (W x D x H cm) : 55 x 63 x 86 (0,30 m³)
• Gross weight (Kg) : 60

Structure : completely realized in stainless steel 18/10 AISI 304. Inside, the
structure it includes a bin, realized in atoxic plastic material, where is stored
the ice, when this bin is full, the machine stop itself to produce ice. The bin
is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made that
closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes for
the water inlet and outlet are included in the machine, the one for the inlet is
about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 33
• Bin capacity (Kg) : 16 (approx. 950 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 5,1 (version A), 14 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 48
• Dimensions (W x D x H cm) : 50 x 58 x 82
• Net weight (Kg) : 48
• Packed dimensions (W x D x H cm) : 55 x 63 x 86 (0,30 m³)
• Gross weight (Kg) : 56

Structure : completely realized in stainless steel 18/10 AISI 304. Inside, the
structure it includes a bin, realized in atoxic plastic material, where is stored the ice,
when this bin is full, the machine stop itself to produce ice. The bin is also insulated,
to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made that closes
the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The water
inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes for the water inlet
and outlet are included in the machine, the one for the inlet is about 110 cm long,
while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 28
• Bin capacity (Kg) : 9 (approx. 530 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by Nr 1
hermetic compressor and Nr 1 finned condenser, air cooled through a fan, in the
version “A” or Nr 1 condenser, water cooled, in the version “W”. Also, the motor
compartment, incorporates the special evaporator with the shape of the cubes that
once formed, automatically release them into the storage bin. All the mounted
components are industrial grade to grant the maximum reliability
• Water consumption (litres/Kg) : 5,1 (version A), 14 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 48
• Dimensions (W x D x H cm) : 39 x 46 x 69
• Net weight (Kg) : 37
• Packed dimensions (W x D x H cm) : 44 x 51 x 78 (0,18 m³)
• Gross weight (Kg) : 44

Structure : completely realized in stainless steel 18/10 AISI 304. Inside,
the structure it includes a bin, realized in atoxic plastic material, where is
stored the ice, when this bin is full, the machine stop itself to produce ice.
The bin is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made
that closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes
for the water inlet and outlet are included in the machine, the one for the
inlet is about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 46
• Bin capacity (Kg) : 25 (approx. 1470 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 4 (version A), 16 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 50
• Dimensions (W x D x H cm) : 50 x 58 x 93
• Net weight (Kg) : 56
• Packed dimensions (W x D x H cm) : 55 x 63 x 97 (0,34 m³)
• Gross weight (Kg) : 64

Structure : completely realized in stainless steel 18/10 AISI 304. Inside,
the structure it includes a bin, realized in atoxic plastic material, where is
stored the ice, when this bin is full, the machine stop itself to produce ice.
The bin is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made
that closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes
for the water inlet and outlet are included in the machine, the one for the
inlet is about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 42
• Bin capacity (Kg) : 16 (approx. 950 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 4 (version A), 16 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 50
• Dimensions (W x D x H cm) : 50 x 58 x 82
• Net weight (Kg) : 52
• Packed dimensions (W x D x H cm) : 55 x 63 x 86 (0,30 m³)
• Gross weight (Kg) : 60

Structure : completely realized in stainless steel 18/10 AISI 304. Inside, the
structure it includes a bin, realized in atoxic plastic material, where is stored
the ice, when this bin is full, the machine stop itself to produce ice. The bin
is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made that
closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes for
the water inlet and outlet are included in the machine, the one for the inlet is
about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 33
• Bin capacity (Kg) : 16 (approx. 950 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 5,1 (version A), 14 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 48
• Dimensions (W x D x H cm) : 50 x 58 x 82
• Net weight (Kg) : 48
• Packed dimensions (W x D x H cm) : 55 x 63 x 86 (0,30 m³)
• Gross weight (Kg) : 56

Structure : completely realized in stainless steel 18/10 AISI 304. Inside, the
structure it includes a bin, realized in atoxic plastic material, where is stored the ice,
when this bin is full, the machine stop itself to produce ice. The bin is also insulated,
to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made that closes
the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The water
inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes for the water inlet
and outlet are included in the machine, the one for the inlet is about 110 cm long,
while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 28
• Bin capacity (Kg) : 9 (approx. 530 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by Nr 1
hermetic compressor and Nr 1 finned condenser, air cooled through a fan, in the
version “A” or Nr 1 condenser, water cooled, in the version “W”. Also, the motor
compartment, incorporates the special evaporator with the shape of the cubes that
once formed, automatically release them into the storage bin. All the mounted
components are industrial grade to grant the maximum reliability
• Water consumption (litres/Kg) : 5,1 (version A), 14 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 48
• Dimensions (W x D x H cm) : 39 x 46 x 69
• Net weight (Kg) : 37
• Packed dimensions (W x D x H cm) : 44 x 51 x 78 (0,18 m³)
• Gross weight (Kg) : 44
